Platform 07 / 18
Business domain
Metering & Field DataVEGA
Cloud Meter Reading & Energy Monitoring
Cloud-based remote meter reading and energy monitoring platform designed for sites with 1 to 10,000 metering points. It reads the meters of industrial zones, factories, small businesses, solar plants and charging stations through their modems, and shows consumption, reactive ratios and generation on one screen. It works on phones and tablets as well as on a computer.
07Highlights
- 01From 1 to 10,000 metering points: one platform for industrial zones, factories, small businesses, solar plants, charging stations, malls and residential complexes
- 02Cloud-based and multi-tenant: each organization's data, users and settings are kept separate
- 03Remote reading of meters from different brands over GPRS/Ethernet modems with IEC 62056-21 and DLMS/COSEM
- 04Energy monitoring: multi-tariff indexes, load profile, demand and an hourly consumption heatmap
- 05Reactive monitoring: inductive and capacitive ratio tracking with notifications on threshold breach
- 06Generation monitoring: export-direction indexes and load profile, so solar generation and consumption sit on the same metering point
- 07Scheduled and on-demand reads; a live communication log shows why a meter could not be read
- 08Billing period report, Excel/CSV export and a read-only API for billing software
- 09Subscriber login: a participant company or tenant sees only its own metering points
- 10Access from a phone or tablet browser, with no separate app to install
07Modules
| Code | Module | Scope |
|---|---|---|
| READ | Reading Engine | IEC 62056-21 and DLMS/COSEM, scheduled and on-demand reads, automatic retries, clock synchronization, remote disconnect and reconnect |
| MON | Energy Monitoring | Indexes, load profile, demand curves, hourly consumption heatmap, monthly and month-to-date consumption, energy balance per group |
| RPM | Reactive Monitoring | Inductive and capacitive ratios, per-organization thresholds, threshold breach notifications |
| GEN | Generation Monitoring | Import and export indexes, generation load profile, generation and consumption series |
| RPT | Reports & Integration | Billing period report, scheduled exports, Excel/CSV, read-only API and API keys |
| DGN | Diagnostics | Live communication log, order status and attempt history, connection test, metering point health |
| EVT | Events & Map | Outage, tamper and quality events, acknowledgement, metering points on a map coloured by health, in-app notifications |
| ADM | Administration | Roles and permissions, subscriber users, bulk Excel/CSV import, meter replacement wizard, audit log |
- READReading Engine
- IEC 62056-21 and DLMS/COSEM, scheduled and on-demand reads, automatic retries, clock synchronization, remote disconnect and reconnect
- MONEnergy Monitoring
- Indexes, load profile, demand curves, hourly consumption heatmap, monthly and month-to-date consumption, energy balance per group
- RPMReactive Monitoring
- Inductive and capacitive ratios, per-organization thresholds, threshold breach notifications
- GENGeneration Monitoring
- Import and export indexes, generation load profile, generation and consumption series
- RPTReports & Integration
- Billing period report, scheduled exports, Excel/CSV, read-only API and API keys
- DGNDiagnostics
- Live communication log, order status and attempt history, connection test, metering point health
- EVTEvents & Map
- Outage, tamper and quality events, acknowledgement, metering points on a map coloured by health, in-app notifications
- ADMAdministration
- Roles and permissions, subscriber users, bulk Excel/CSV import, meter replacement wizard, audit log

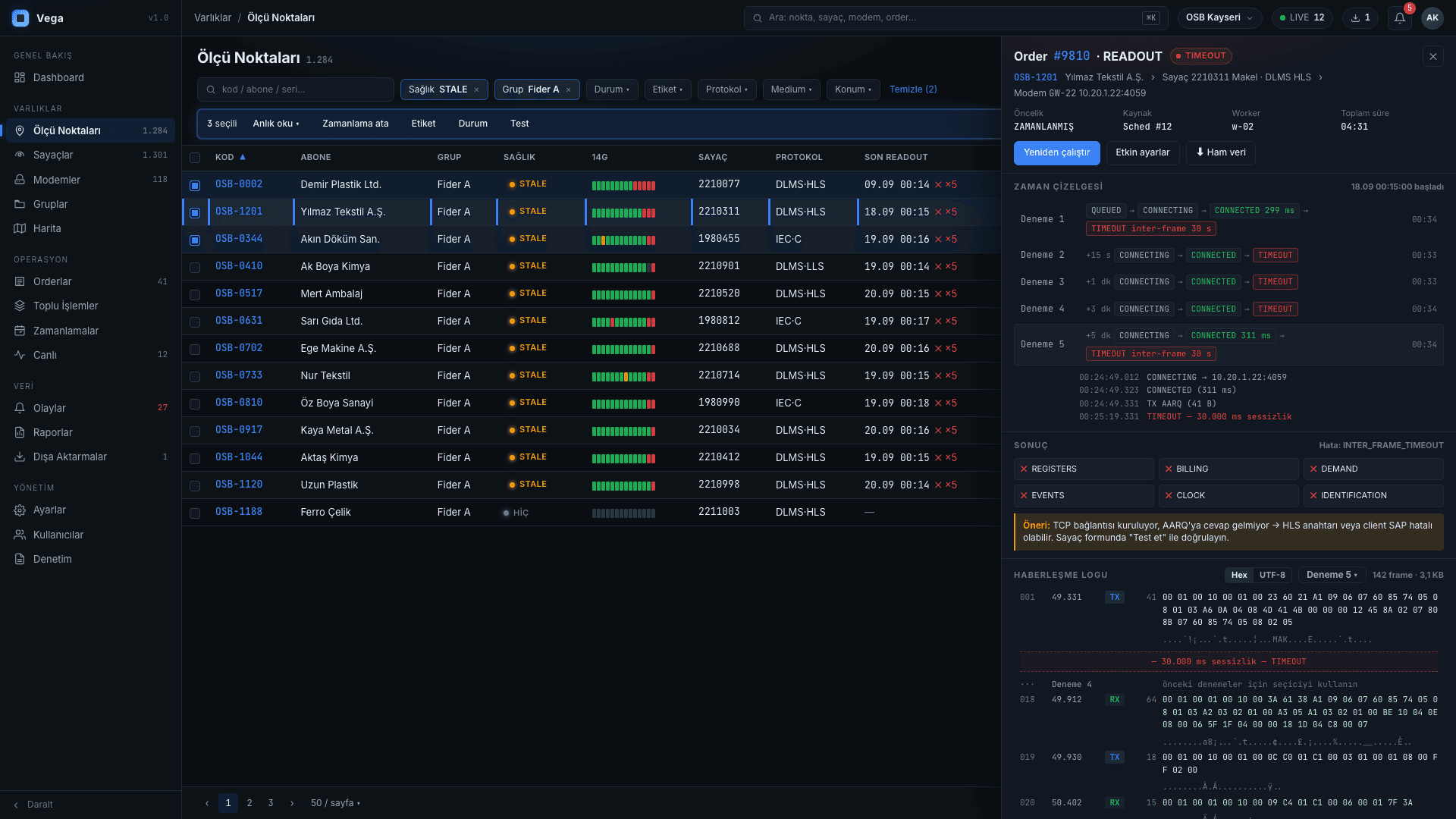

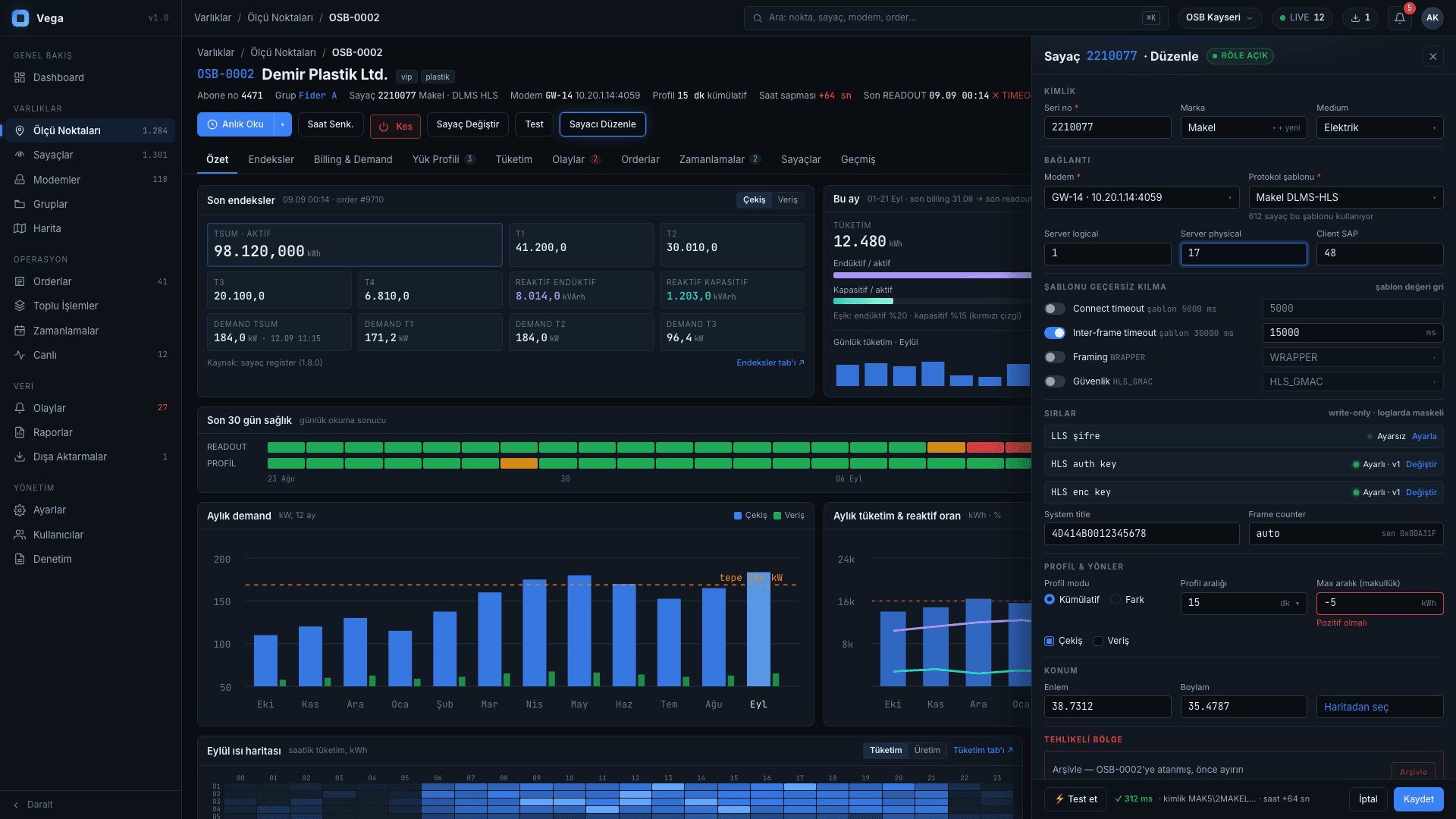

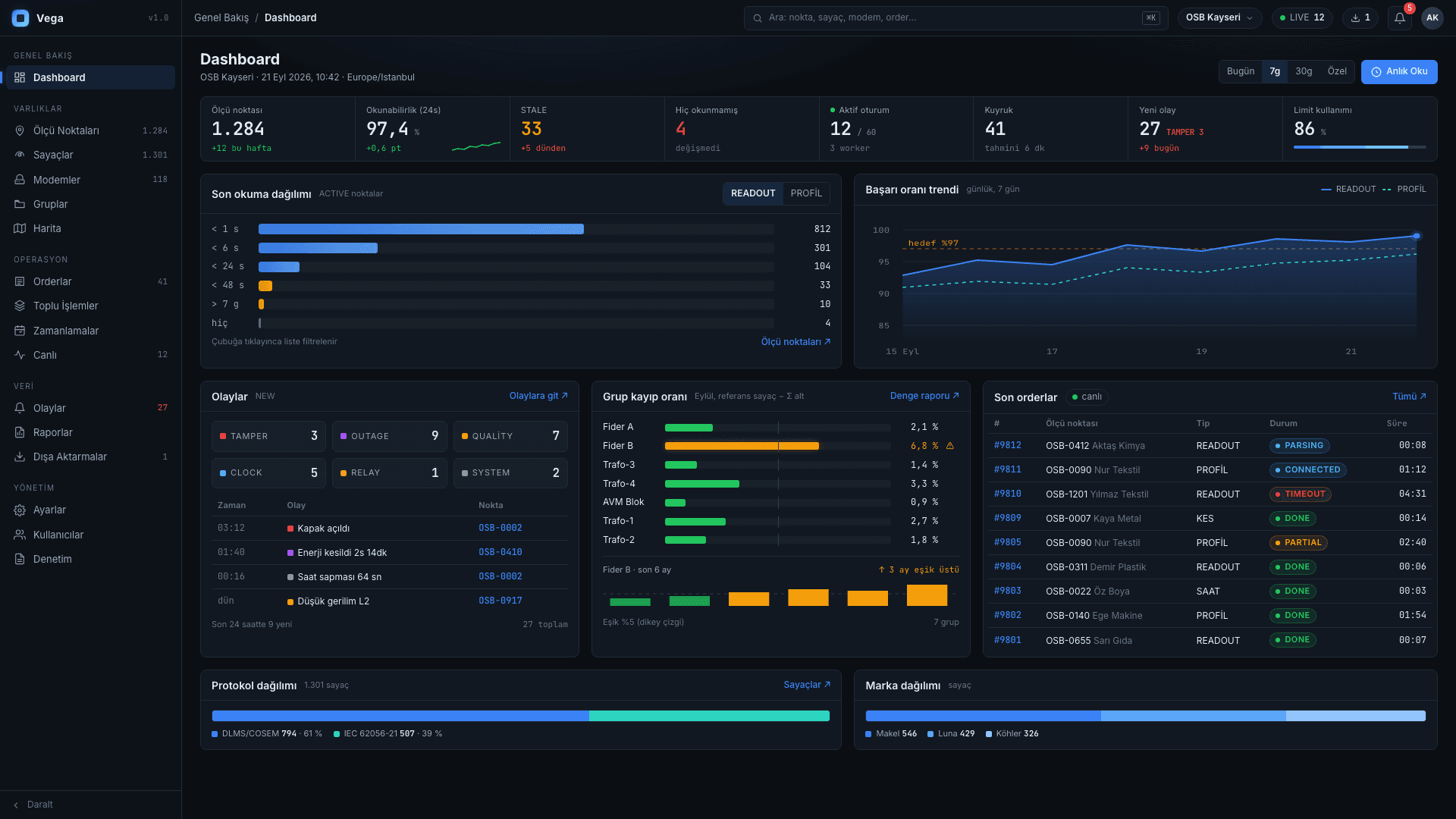

07Screenshots
